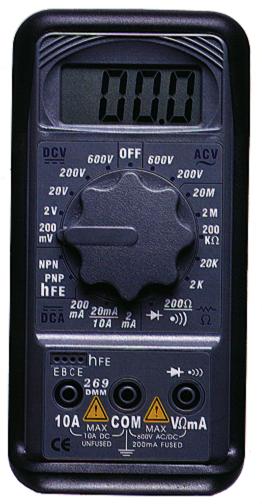

meter size: 60mm x 110mm x 12mm
Size with case: 80mm x 114mm x 16mm
|
|
ACV
|
|
Range
|
Resolution
|
Accuracy
|
|
200V
|
100mV
|
+/-1.50%
+5 digits
|
|
600V
|
1V
|
+/- 2.0%
+5 digits
|
|
DCV
|
|
Range
|
Resolution
|
Accuracy
|
|
200mV
|
100 µV
|
+/-1.0%+3
digits
|
|
2V
|
1mV
|
+/-0.5%+3
digits
|
|
20V
|
10mV
|
+/-1.0%+3
digits
|
|
200V
|
100mV
|
+/-1.0%+3
digits
|
|
600V
|
1V
|
+/-1.0%+3
digits
|
|
Continuity
|
|
Indicator
|
Frequency
|
Sound
at
|
|
Buzzer
|
2.1Khz
|
<35
+/-5 ohm
|
|
Diode
|
|
Max
|
Resolution
|
Test
Voltage
|
|
0.8mA
|
1mV
|
3.3V
|
|
|
Resistance
|
|
Range
|
Resolution
|
Accuracy
|
|
200ohm
|
0.1ohm
|
+/-1.2%
+ 3 digits
|
|
2Kohm
|
1ohm
|
+/-1.2%
+ 3 digits
|
|
20Kohm
|
10ohm
|
+/-1.2%
+ 3 digits
|
|
200Kohm
|
100ohm
|
+/-1.2%
+ 3 digits
|
|
2M
ohm
|
1Kohm
|
+/-1.2%
+ 3 digits
|
|
20M
ohm
|
10Kohm
|
+/-2.5%
+ 4 digits
|
|
DCA
|
|
Range
|
Resolution
|
Accuracy
|
|
2mA
|
1µA
|
+/-1.2%+2digits
|
|
20mA
|
10µA
|
+/-1.2%+2digits
|
|
200mA
|
100µA
|
+/-1.2%+2digits
|
|
10A
|
10mA
|
+/-2.5%+3digits
|
|
Diode
(HFE)
|
|
Range
|
Scope
|
Test
Condition
|
|
NPN
|
0-1000
|
Ib=10µA Vce,3V
|
|
PNP
|
0-1000
|
Ib=10µA Vce,3V
|
|
|
