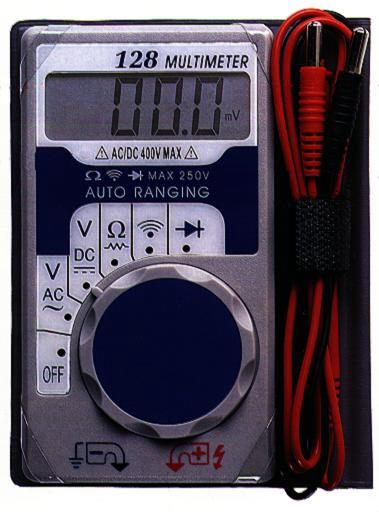

meter size: 60mm x 110mm x 12mm
Size with case: 80mm x 114mm x 16mm
|
|
ACV
|
|
Range
|
Resolution
|
Accuracy
|
|
2V
|
1mV
|
+/- 2.3%
+8 digits
|
|
20V
|
10mV
|
+/- 2.3%
+8 digits
|
|
200V
|
100mV
|
+/- 2.3%
+8 digits
|
|
400V
|
1V
|
+/- 2.3%
+8 digits
|
|
Max dispaly
400V, protect to 750V
|
|
DCV
|
|
Range
|
Resolution
|
Accuracy
|
|
200mV
|
100µV;
|
+/-1.3%+4
digits
|
|
2V
|
1mV
|
+/-0.5%+4
digits
|
|
20V
|
10mV
|
+/-1.3%+4
digits
|
|
200V
|
100mV
|
+/-1.3%+4
digits
|
|
400V
|
1V
|
+/-1.3%+4
digits
|
|
Max display
400V, protect to 750V
|
|
|
Resistance
|
|
Range
|
Resolution
|
Accuracy
|
|
200ohm
|
0.1ohm
|
+/-1.5%
+ 4 digits
|
|
2Kohm
|
1ohm
|
+/-1.5%
+ 4 digits
|
|
20Kohm
|
10ohm
|
+/-1.5%
+ 4 digits
|
|
200Kohm
|
100ohm
|
+/-1.5%
+ 4 digits
|
|
2000K
ohm
|
1Kohm
|
+/-2.0%
+ 4 digits
|
|
20M
ohm
|
10Kohm
|
+/-8.0%
+ 4 digits
|
|
Imput
voltage protect to 250V
|
|
Continuity
|
|
Indicator
|
Frequency
|
Sound
at
|
|
Buzzer
|
2Khz
|
<2Kohm
+/-500ohm
|
|
Diode
|
|
Max
|
Resolution
|
Test
Voltage
|
|
0.8mA
|
1mV
|
1.5V
|
|
|
